Home > All Collections > Industrial Ice Maker Machines > Container type ice block making machine, Ice block maker machine

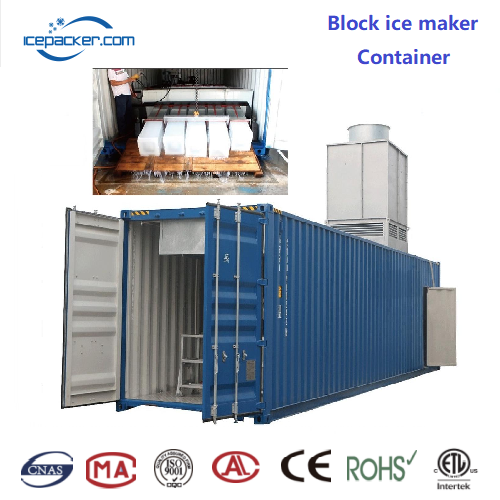

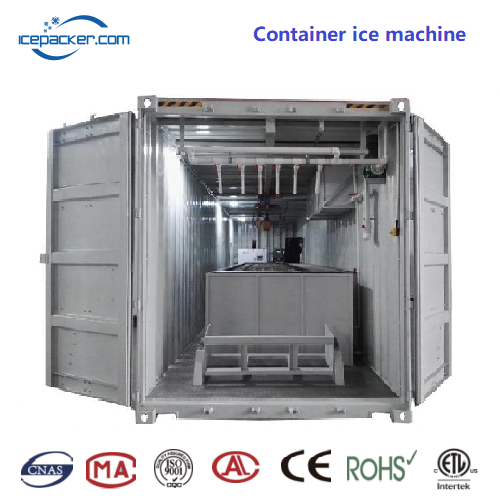

Container type ice block making machine, Ice block maker machine

Name: Container type ice block making machine, Ice block maker machine
Brand: Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
Availability: InStock
Rating: 5 (1 reviews)

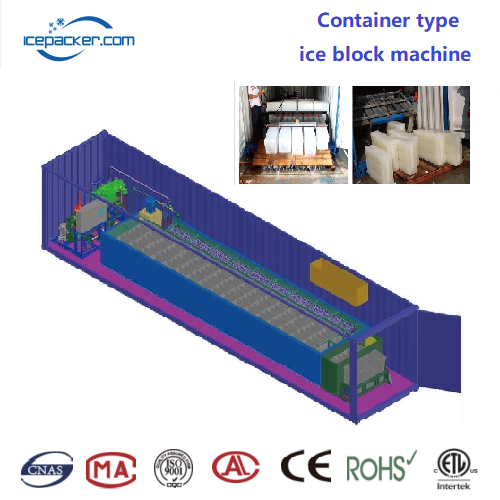

Install all the equipment of the entire ice maker in an ISO standard container, which is convenient for transportation, installation, and movement. There is no need for any pipeline connections on site, and only the site, water, and electricity can be provided for operation. It can also be directly installed on a truck to form a mobile ice making station. Both direct cooling and saltwater type ice blocks can be made into containerized ice makers, but due to space limitations, container ice makers can only reach a maximum capacity of 10 tons.

Description

Overview of Container Block Ice Machine:

Install all the equipment of the entire ice maker in an ISO standard container, which is convenient for transportation, installation, and movement. There is no need for any pipeline connections on site, and only the site, water, and electricity can be provided for operation. It can also be directly installed on a truck to form a mobile ice making station. Both direct cooling and saltwater type ice breakers can be made into containerized ice makers, but due to space limitations, container ice breakers can only reach a maximum capacity of 10 tons.

Product features
1. Overall movable, suitable for ice making at port terminals, with strong fluidity;
2. Depending on the production volume, a 20 foot/40 foot container can be selected;
3. Containers can be placed directly in an outdoor environment without the need for a factory building.

Applicable scope
1. Customers without factories;
2. Customers who engage in short-term fishing in ports and need to move frequently to make ice;
3. Customers who use multiple ice rinks but only need one ice maker.

Model	Capacity (T)	Refrigeration power (kw)	Total power (kw)	Rated current(A)	Ice discharge temperature (℃)	Compressor power (kw)	Refrigerant	Condensing method	Dimension *LWH(mm)*	Dimension *LWH(mm)*
FP-B30	3T	23	12.6	25	-8	11.3	R22/R404A	Air cooling / water cooling	◇590022502400	◇595023002300
FP-B50	5T	30.5	16.28	29.86	-8	15.35	R22/R404A	Air cooling / water cooling	◆640022502500	◇595023002300
FP-B80	8T	58	31.25	62.5	-8	27.2	R22/R404A	Water cooling / Evaporative cooling	◆930022502500	◆880022502400
								Ice block size	450185800	350120700
Note: ◇ is a 20 foot container, ◆ is a 40 foot container.
