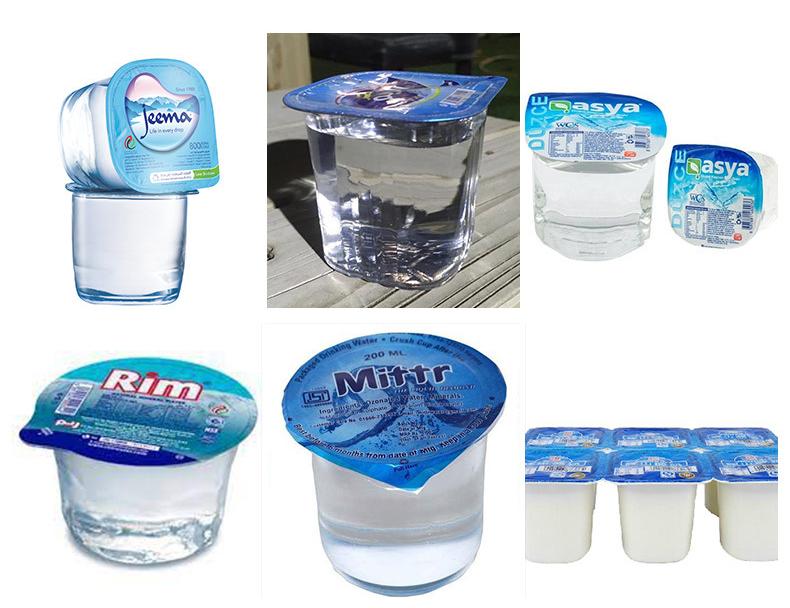

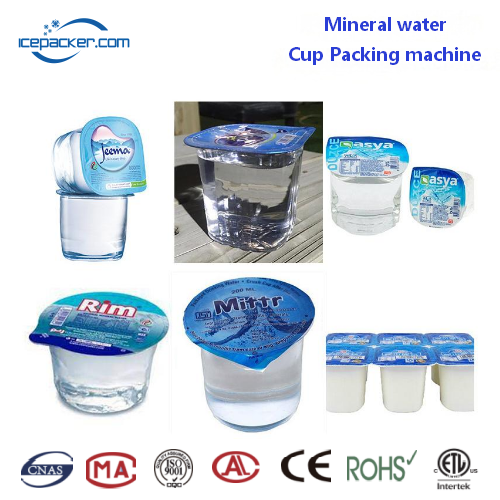

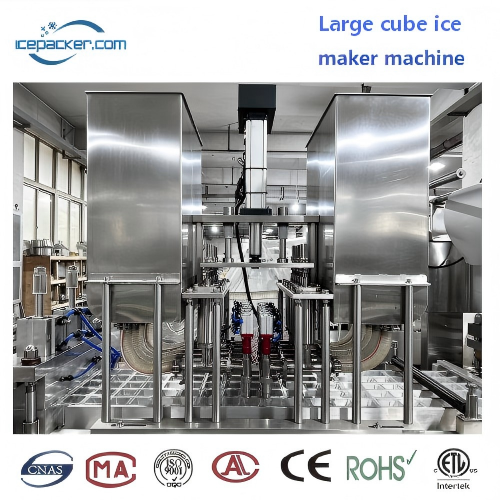

Mineral Water Cup Packing Machine is a high-tech equipment. which is R&D by our professional technical team. It adopts PLC and touch panel, Servo Sheet Feeding. high automation. easy operation, stable and reliable working. This machine is widely used for PET large ice cube, cup water/juice and PS cup yogurt, such free-flowing liquid or semi-fluid packaging. It is equipped with high automation: from PS/PET/PVC sheet roll feeding heating. cup blow forming. filling. sealing. Date printing (optional). cutting. finished products conveying out and inline cartoning machine (optional). Whole machine could achieve GMP standard. packaging products safety and healthy.
Introduction:

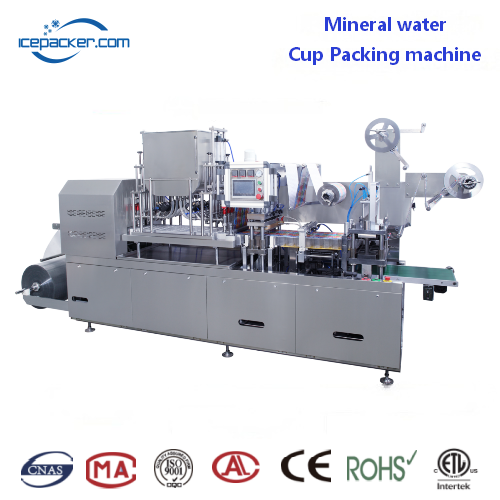

Automatic Water Cup Filling Packing Machine is a high-tech equipment. which is R&D by our professional technical team. It adopts PLC and touch panel, Servo Sheet Feeding. high automation. easy operation, stable and reliable working. This machine is widely used for PET cup water/juice and PS cup yogurt, such free-flowing liquid or semi-fluid packaging. It is equipped with high automation: from PS/PET/PVC sheet roll feeding heating. cup blow forming. filling. sealing. Date printing (optional). cutting. finished products conveying out and inline cartoning machine (optional). Whole machine could achieve GMP standard. packaging products safety and healthy.
Main Technical Parameter
|
Model |
FP-420P Mineral Water Cup Packing Machine |
|
Estimated Running Speed |
6-15 shots/min |
|
Max. Forming Area |
420x180mm |
|
Max. Forming Depth |
≤80mm |
|
Stroke |
40-180mm |
|
Air Pressure |
0.6-0.8MPa |
|
Air Consumption |
≥0.5m³/min |
|
Feeding Servo Motor Power |
0.75KW *1set |
|
Forming and Sealing Driving Method |
Pneumatic |
|
Cutting Position Driven By Servo |
2KW*1 |
|
Heating Power |
12KW |
|
Lower Film Material (Rigid Film) |
PS, PET, PVC Sheet: 0.2-1.0mmX420mm max. |
|
Upper Sealing Film |
0.02-0.085mmX420mm max. |
|
Power Voltage |
3P, 4W, 380V/50HZ |
|
Machine Dimension |
4500x1000x1900mm(L/W/H) |
|
Machine Weight |
1500kg |
Main Components List of Mineral Water Cup Packing Machine:
|
No. |
Name |
Brand |
Country |
|
1 |
Touch Screen |
|
Taiwan |
|
2 |
PLC |
|
Taiwan |
|
3 |
Solid State Relay |
|
Taiwan |
|
4 |
Switches & Buttons |
|
France |
|
5 |
AC Contactor |
||
|
6 |
Circuit Breaker |
||
|
7 |
Switching Power Supply |
|
Taiwan |
|
8 |
Servomotor |
|
Taiwan |
|
9 |
Proximity Switch |
|
Japan |
|
10 |
Mini Relay |
||
|
11 |
Photoelectricity Switch |
||
|
12 |
COLOR PHOTO DETECTOR SENSOR |
|
CN |
|
13 |
Solenoid Valve |
|
Taiwan |
|
14 |
Air Cylinder |
And other brand |
|
|
15 |
Temperature Controller |
|
CN |
