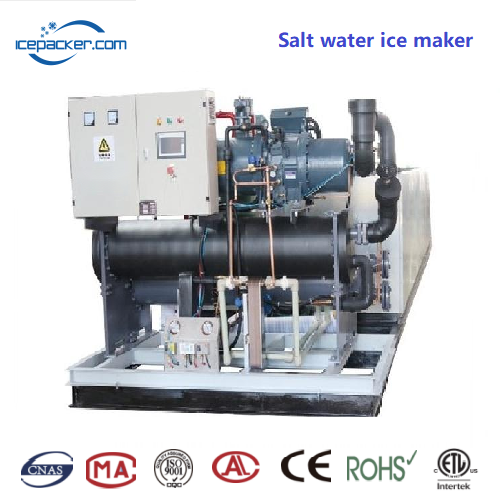

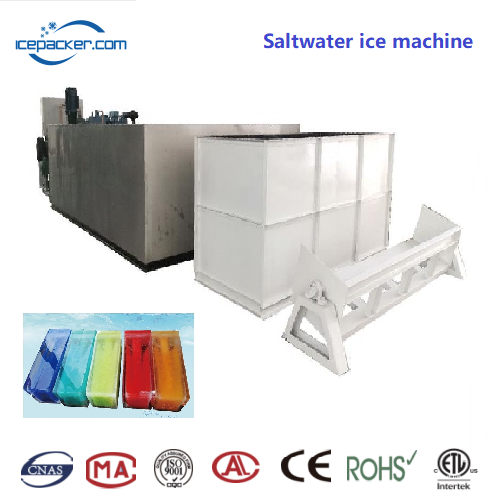

Salt water ice block maker machine

Salt water ice maker machine is an ice making method that uses salt water as a heat exchange medium. Saltwater block ice machines with a daily production capacity of less than 20T do not require a civil saltwater pool. The entire machine is assembled in the factory. When the machine arrives at the customer's site, it only needs to place the ice maker, install it and connect the pipeline between the ice machine and the cooling tower.
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
  • Salt water ice block maker machine,Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack

Description

Salt water ice maker machine is an ice making method that uses salt water as a heat exchange medium. It uses shell and tube evaporators as a tool for heat exchange between refrigerant and saltwater, and utilizes the circulation of saltwater in the saltwater pool to take away the temperature of fresh water in the ice bucket, thereby allowing the fresh water to freeze into ice. Traditional saltwater block ice machines require a civil saltwater pool. In order to meet market demand, we have launched an integrated saltwater block ice machine. Saltwater block ice machines with a daily production capacity of less than 20T do not require a civil saltwater pool. The entire machine is assembled in the factory. When the machine arrives at the customer's site, it only needs to place the ice maker, install it and connect the pipeline between the ice machine and the cooling tower.

Features of Salt water ice maker machine:

  1. With the traditional brine heat exchange ice making process, the ice machine operates stably and has a low failure rate;
  2. According to the customer's needs, we can design an ice machine with a tonnage suitable for the customer's needs;
  3. The ice mold can be made of galvanized plate or stainless steel;"
  4. The ice-making process of the machine is fully automated and does not require professional personnel to work with certificates;
  5. The size of the ice cubes can be customized at will. "

 Application scope of Salt water ice maker machine:

  1. Preservation and transportation of fruits and vegetables;
  2. Use ice for ice sculptures, ice exhibitions, and scenery;
  3. Meat processing plants, live poultry slaughtering plants, seafood processing;
  4. Mine cooling and factory cooling;
  5. Ice used in the chemical industry;

Technical parameters of Salt water ice maker machine:

Model

Capacity
(T)

Refrigeration capacity(kw)

Input power
(kw)

Rated current

(A)

Ice temperature
  (C)

Compressor power
(kw)

Refrigerant

Cooling method

Dimension
L*W*H(mm)

Space occupation

FPSB10

1T

8.6

4.9

9.6

-8

4.15

R22/R404A

Air cooling/water cooling

4200*1600*1500

6000*1800*3500

FPSB20

2T

15.78

8.04

16



7.11

R22/R404A

Air cooling/water cooling

5000*1600*1500

6800*1800*3500

FPSB30

3T

21.5

12.37

24.3

-8

9.74

R22/R404A

Air cooling/water cooling

5600*1900*1600

7400*2100*3500

FPSB50

5T

38.5

21.56

43.12

-8

17.43

R22/R404A

Air cooling/water cooling

6400*2600*1600

8200*2900*3500

FPSB 100

lOT

773

44.6

88.8

-8

367

R22/R404A

Water cooling/evaporative cooling

7600*2600*1750

9400*2900*3500

FPSB150

15T

115

62.7

125



53.3

R22/R404A

Water cooling/evaporative cooling

9600*2600*1750

11400*2900*3500

FPSB 200

20T

147

90.5

181

-8

75

R22/R404A

Water cooling/evaporative cooling

10400*3000*1800

12200*3500*3500

FPSB 250

25T

194

97

194



85.5

R22/R404A

Water cooling/evaporative cooling

9200*4100*1800

11000*4900*3500

FPSB 300

30T

234.8

125

250

-8

103

R22/R404A

Water cooling/evaporative cooling

10300*4500*1800

12100*5300*3500

FPSB400

40T

308

147

294

-8

121.5

R22/R404A

Water cooling/evaporative cooling

12300*4500*1800

14100*5300*3500

FPSB 500

50T

368

185.6

378

-8

150

R22/R404A

Water cooling/evaporative cooling

12300*5400*1800

14100*6600*3500

3MSB 600

60T

455.8

215

428

-8

181.5

R22/R404A

Water cooling/evaporative cooling

13800*5400*1800

15600*6600*3500



Ice mold size

380*165*1150

380*165*1150
