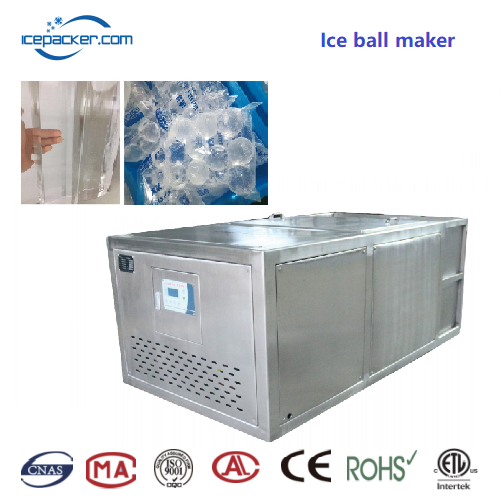

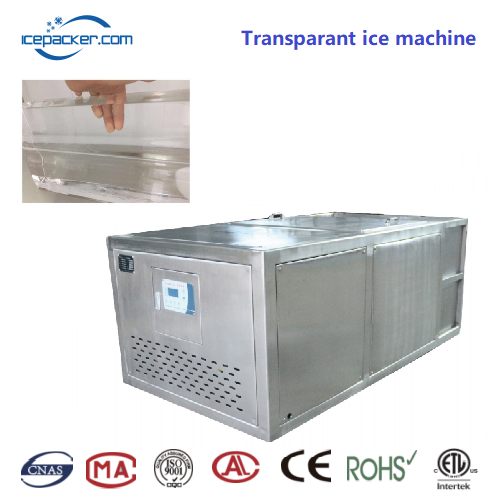

Transparant ice block machine, Ice ball making machine

Name: Transparant ice block machine, Ice ball making machine
Brand: Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
Availability: InStock
Rating: 5 (1 reviews)

The transparent ice maker machine places ice buckets into a saltwater pool, freezes them into ice through heat exchange, lifts the ice bucket, and puts it into a melting ice pool for heating, The ice surface melts and then de-icing finish.

Description

Overview of transparent ice maker machine:

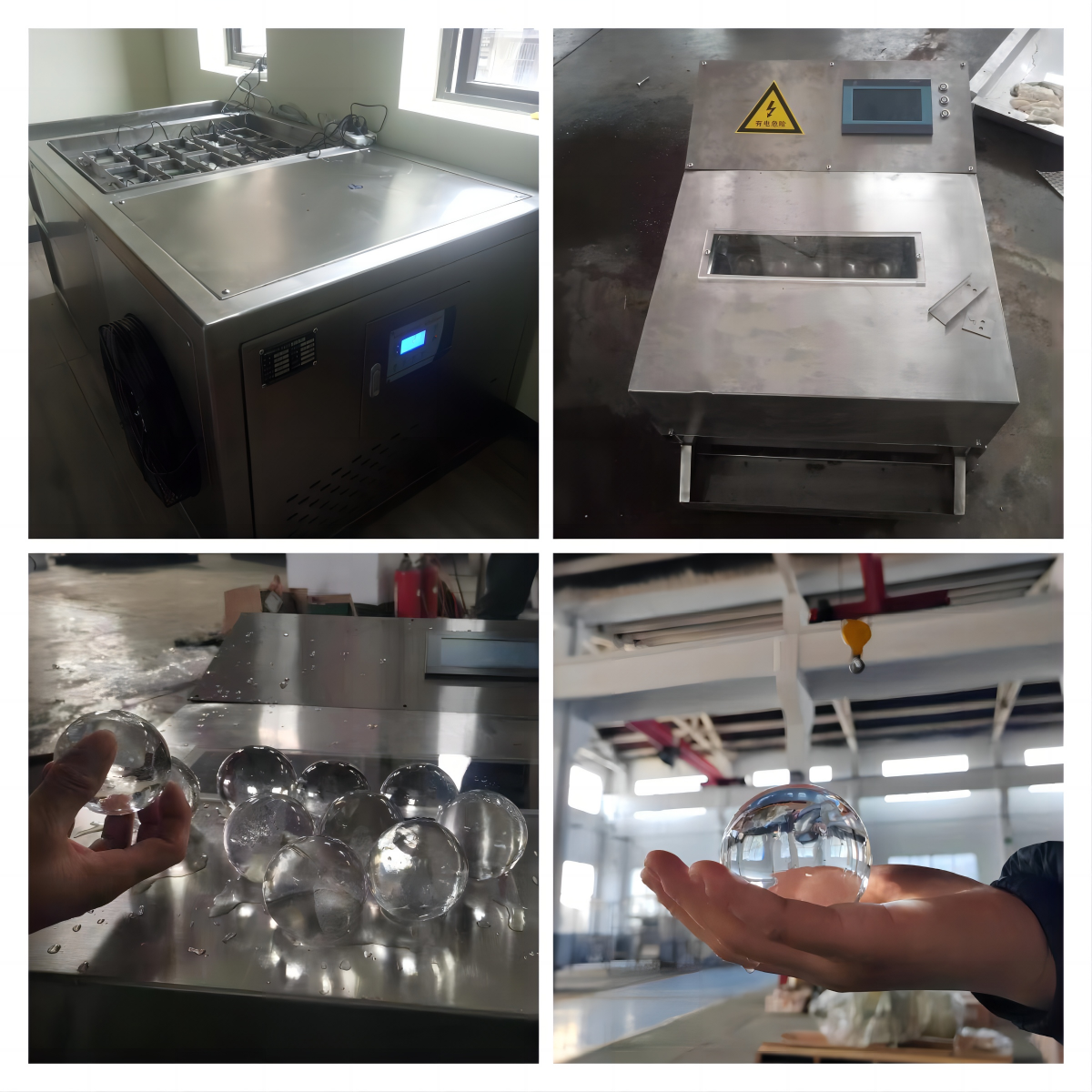

The saltwater transparent ice maker machine places all the water filled ice buckets into a saltwater pool, undergoes professional refrigeration technology, freezes them into ice through heat exchange, lifts the ice bucket, and puts it into a melting ice pool for heating. The ice surface melts and then de-icing finish.

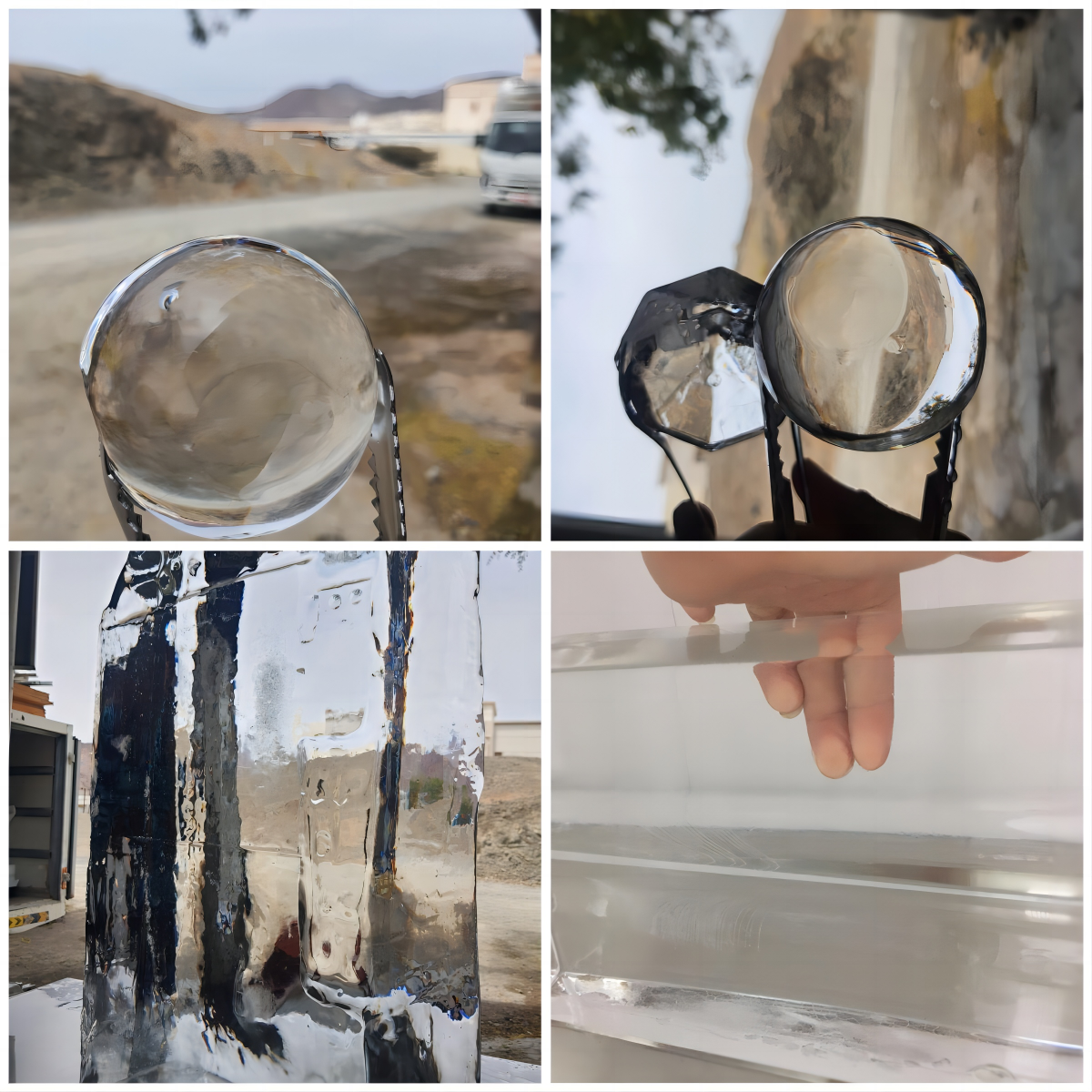

The transparent ice maker machine adopts new technology, enjoying better ice quality. The ice cubes are crystal clear and not easy to break, and are widely used in the production of various high-level ice sculptures. According to different conditions such as ice size, ambient temperature, and inlet water temperature, the ice formation time of the saltwater transparent ice maker is about 60 to 96 hours, or even longer.

We suggest thickness of ice block more than 20 centimeters and an ice block size of over 75 kilograms, to achieve the best transparency effect for saltwater.

Technical parameter of transparent ice maker machine:

Model	Capacity (T)	Refrigeration power (kw)	Total power (kw)	Rated current(A)	Ice discharge temperature (℃)	Compressor power (kw)	Refrigerant	Condensing method	Dimension *LWH(mm)*	Dimension *LWH(mm)*
FP-B30	3T	23	12.6	25	-3	11.3	R22/R404A	Air cooling/water cooling	590022502400	595023002300
FP-B50	5T	30.5	16.28	29.86	-3	15.35	R22/R404A	Air cooling/water cooling	640022502500	595023002300
FP-B80	8T	58	31.25	62.5	-3	27.2	R22/R404A	Water cooling/evaporative cooling	930022502500	880022502400
								Ice block size	450185800	350120700
