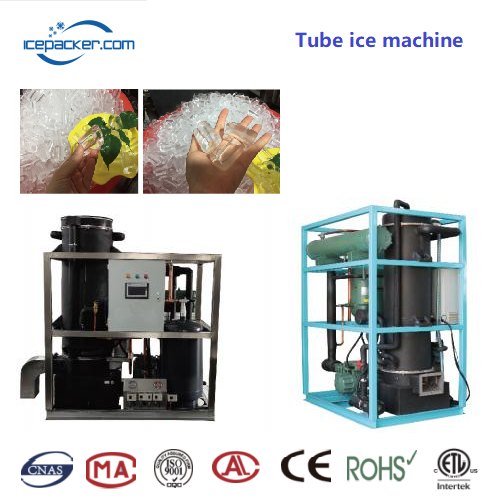

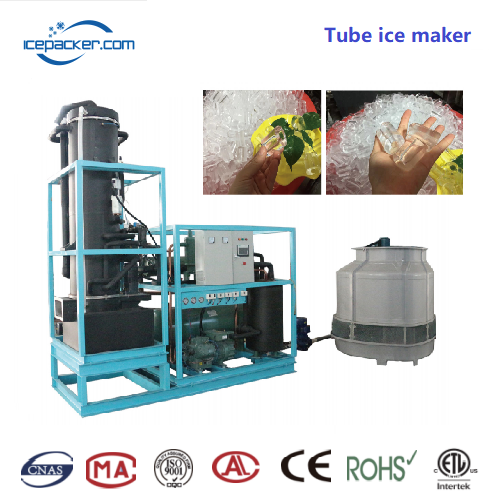

Tube ice making machine, Ice tube maker machine

Name: Tube ice making machine, Ice tube maker machine
Brand: Ice Cup Machine, Ice Maker Machines Manufacturer | Shanghai Fillpack
Availability: InStock
Rating: 5 (1 reviews)

Tube ice making machine is named due to its hollow tube shaped ice production, with a cylindrical hollow tube shaped ice with an inner hole diameter of 3mm to 10mm and a length between 25mm and 42mm. There are various sizes to choose from, and the outer diameters of ice include 22mm, 29mm, 35mm, etc. The shape of the tube ice is round and elegant, crystal clear, and therefore highly favored by consumers. It is widely used in making alcoholic beverages, chilled beverages, decoration, and food preservation.

Description

Overview of tube ice machine:
It is named due to its hollow tube shaped ice production, with a cylindrical hollow tube shaped ice with an inner hole diameter of 3mm to 10mm and a length between 25mm and 42mm. There are various sizes to choose from, and the outer diameters of ice include 22mm, 29mm, 35mm, etc. The shape of the tube ice is round and elegant, crystal clear, and therefore highly favored by consumers. It is widely used in making alcoholic beverages, chilled beverages, decoration, and food preservation.

The pipes in the icing section of the tube ice maker are all made of SUS304 food grade material, and the upper and lower water tanks, as well as the ice cutting mechanism and the parts in contact with the ice, are also made of SUS304 stainless steel. Therefore, it is a food grade ice making equipment. Machines can be used to produce commercial ice, as well as for industrial refrigerated and frozen ice making.

Product features:
1. The evaporator is made of high-quality stainless steel SUS304 material, which meets international hygiene standards;
2. The machine adopts a modular design, with a compact structure and convenient installation and use;
3. PLC computer module human-machine interface, automatic switching between ice making and de icing, saving time and effort;
4. All equipment is assembled using CAD-3D simulation, which makes the layout of equipment components and accessories, the direction of pipelines more reasonable, the structure compact and not crowded, and the operation and maintenance more user-friendly;
5. Non standard products can be customized for customers according to different working conditions.

Applicable scope:
1. Adding ice to alcoholic beverages;
2. Seafood and seafood preservation and refrigeration;
3. Vegetable and fruit preservation;
4. Medicine and chemical cooling;
5. Industrial cooling

Tehnical parameters:
Small model ice tube making machines

Model	Capacity (T)	Refrigeration power (kw)	Total power (kw)	Rated current (A)	Ice discharge temperature (℃)	Compressor power (kw)	Refrigerant	Condensing method	Dimension *LWH(mm)*	Space occupation *LWH(mm)*
FP-T10	1T	8.9	4.6	9.2	-3	3.7	R22/R404A	Air cooling/water cooling	14909001850	246014251850
FP-T20	2T	17.7	8.3	16.6	-3	7.3	R22/R404A	Air cooling/water cooling	149010501850	246015751850
FP-T30	3T	25.4	11.8	23.6	-3	10	R22/R404A	Air cooling/water cooling	165011501980	269016501980
FP-T50	5T	40	17.35	23.5	-3	15.7	R22/R404A	Air cooling/water cooling	176012502200	276018502200
FP-T80	8T	67.5	32	64	-3	27	R22/R404A	Air cooling/water cooling	293012902700	420019002800
FP-T100	10T	82.6	40	80	-3	33.8	R22/R404A	Water cooling/evaporative cooling	293012902950	420019003150

High capacity ice tube making machines:

Model	Capacity (T)	Refrigeration power (kw)	Total power (kw)	Rated current (A)	Ice discharge temperature (℃)	Compressor power (kw)	Refrigerant	Condensing method	Dimension *LWH(mm)*	Space occupation *LWH(mm)*
FP-T150	15T	121.4	55.5	110	-3	48.8	R22/R404A	Water cooling/evaporative cooling	275016803500	275016803500
FP-T150	15T	121.4	55.5	110	-3	48.8	R22/R404A	Water cooling/evaporative cooling	275016803500	275016803500
FP-T200	20T	166	70	140	-3	61.9	R22/R404A	Water cooling/evaporative cooling	296021003550	296021003550
FP-T250	25T	205	92	184	-3	80	R22/R404A	Water cooling/evaporative cooling	340023503750	340023503750
FP-T300	272	215	115	230	-3	102	R22/R404A	Water cooling/evaporative cooling	395023504050	395023504050
